Rivet Rack

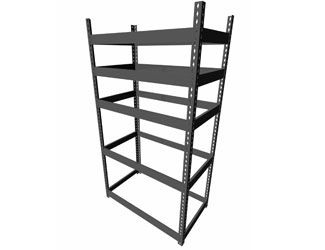

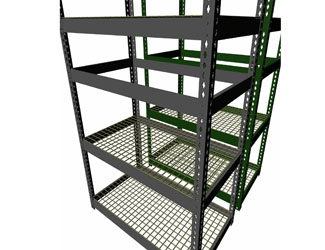

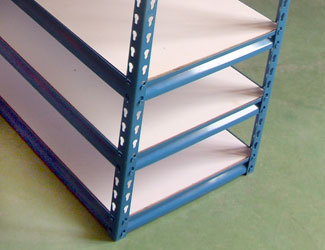

Hardy RivRak is lightweight, boltless shelving that offers great flexibility. From our individual components you can assemble any number of shelving configurations to fit your needs. You can fulfill your storage needs with a few minutes and a rubber mallet!
This easy to assemble shelving system not only gives you flexibility but strength as well. RivRak comes in our standard 1-1/2” x 1-1/2” hole spacing, giving you the ability to place shelves in nearly limitless configurations.
You can order any mix of post, single rivet, double rivet, channel or z-beam you need. Whatever your shelving application requires of you, we can help you get there with this great, versatile solution.
Rivet Shelving - Click Here
Rivet Shelving Systems |
Description |
Wt lbs ea |
Ga. |
Color |
1-1/2"x1-1/2" 14 Ga Angle Post |
|||
| 1-1/2"x1-1/2" 14 Ga Angle Post 2' | 1.46 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga Angle Post 3' | 2.10 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 4' | 2.92 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 5' | 3.65 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 6' | 4.40 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 7' | 5.11 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 8' | 5.85 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 9' | 6.58 | 14 | Gray |
| 1-1/2"x1-1/2" 14 Ga. Angle Post 12' | 8.77 | 14 | Gray |
1-7/8"x1-7/8" 14 Ga. Angle Post HD |
|||
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 3' | 2.52 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 4' | 3.36 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 5' | 4.20 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 6' | 5.04 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 7' | 5.88 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 8' | 6.72 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 10' | 7.56 | 14 | Gray |
| 1-7/8"x1-7/8" 14 Ga. Angle Post HD 12' | 10.08 | 14 | Gray |
16 Ga. Double Rivet Beam |
|||
| 16 Ga. Double Rivet Beam 12" | 0.72 | 16 | Gray |
| 16 Ga. Double Rivet Beam 15" | 0.90 | 16 | Gray |
| 16 Ga. Double Rivet Beam 18" | 1.08 | 16 | Gray |
| 16 Ga. Double Rivet Beam 24" | 1.44 | 16 | Gray |
| 16 Ga. Double Rivet Beam 30" | 1.80 | 16 | Gray |
| 16 Ga. Double Rivet Beam 36" | 2.20 | 16 | Gray |
| 16 Ga. Double Rivet Beam 48" | 2.88 | 16 | Gray |
14 Ga. Double Rivet Beam |
|||
| 14 Ga. Double Rivet Beam 12" | 1.12 | 14 | Gray |
| 14 Ga. Double Rivet Beam 18" | 1.72 | 14 | Gray |
| 14 Ga. Double Rivet Beam 24" | 2.31 | 14 | Gray |
| 14 Ga. Double Rivet Beam 30" | 2.90 | 14 | Gray |
| 14 Ga. Double Rivet Beam 36" | 3.50 | 14 | Gray |
| 14 Ga. Double Rivet Beam 48" | 3.64 | 14 | Gray |
| 14 Ga. Double Rivet Beam 60" | 4.55 | 14 | Gray |
| 14 Ga. Double Rivet Beam 69" | 5.23 | 14 | Gray |
| 14 Ga. Double Rivet Beam 72" | 5.46 | 14 | Gray |
| 14 Ga. Double Rivet Beam 96" | 7.28 | 14 | Gray |
14 Ga. Double Rivet Channel Beam HD |
|||
| 14 Ga. Double Rivet Channel Beam HD 72" | 6.90 | 14 | Gray |
| 14 Ga. Double Rivet Channel Beam HD 96" | 9.20 | 14 | Gray |
14 Ga. Single Rivet Beams |
|||
| 14 Ga. Single Rivet Beams 12" | 0.49 | 14 | Gray |
| 14 Ga. Single Rivet Beams 15" | 0.61 | 14 | Gray |
| 14 Ga. Single Rivet Beams 18" | 0.74 | 14 | Gray |
| 14 Ga. Single Rivet Beams 24" | 0.98 | 14 | Gray |
| 14 Ga. Single Rivet Beams 30" | 1.23 | 14 | Gray |
| 14 Ga. Single Rivet Beams 36" | 1.47 | 14 | Gray |
| 14 Ga. Single Rivet Beams 42" | 1.72 | 14 | Gray |
| 14 Ga. Single Rivet Beams 48" | 1.96 | 14 | Gray |
16 Ga. Center Supports |
|||
| 16 Ga. CENTER SUPPORT w/HARDWARE 12" | 0.93 | 16 | Gray |
| 16 Ga. CENTER SUPPORT w/HARDWARE 18" | 1.39 | 16 | Gray |
| 16 Ga. CENTER SUPPORT w/HARDWARE 24" | 1.87 | 16 | Gray |
| 16 Ga. CENTER SUPPORT w/HARDWARE 30" | 2.31 | 16 | Gray |
| 16 Ga. CENTER SUPPORT w/HARDWARE 36" | 2.75 | 16 | Gray |
| 16 Ga. CENTER SUPPORT w/HARDWARE 48" | 3.65 | 16 | Gray |
Clip Shelving - Republic-style
Clip Shelving - Republic-style |
Description |
Wt lbs ea |
Ga. |
Color |
Republic-Style Post on 1-1/2" Centers |
|||
| Republic-Style 7' 1" Post - on 1-1/2" Centers 14 ga. |
4.20 | 14 | Gray |
| Republic-Style 8' 1" Post - on 1-1/2" Centers 14 ga. |
4.80 | 14 | Gray |
Republic-Style Post on
1" Centers |
|||
| Republic-Style 7' 3" Post - on 1" Centers 14 ga. | 4.30 | 14 | Gray |
| Republic-Style 8' 3" Post - on 1" Centers 14 ga. | 4.90 | 14 | Gray |
Sway Braces |
|||
| Republic-Style 12" Sway Brace (16" Overall Length) | 0.44 | 14 | Gray |
| Republic-Style 18" Sway Brace (22" Overall Length) | 0.62 | 14 | Gray |
| Republic-Style 24" Sway Brace (27.5" Overall Length) | 0.77 | 14 | Gray |
| Republic-Style 36" Sway Brace (39.75 Overall Length) | 1.10 | 14 | Gray |
| Republic-Style 48" Sway Brace (52" Overall Length) | 1.47 | 14 | Gray |
| Republic-Style 29 7/16" Sway Brace | 0.85 | 14 | Gray |
| Republic-Style 45 1/2" Sway Brace | 1.32 | 14 | Gray |
| Republic-Style 54 7/8" Sway Brace | 1.60 | 14 | Gray |
Shelving Clips |
|||
| Republic-Style Shelving Clips | 0.10 | 14 | Gray |
Rack Accessories - Click Here
Accessories |
Rivet Shelving Accessories |
|||
| BOLTLESS TIE PLATE 4 POINT | 0.13 | 14 | Gray |
| FOOT PLATE ASSEMBLY RIGHT-HAND SINGLE POST | 0.25 | Gray | |
| FOOT PLATE ASSEMBLY LEFT-HAND SINGLE POST | 0.25 | Gray | |
| FOOT PLATE ASSEMBLY DOUBLE POST | 0.44 | Gray | |
Contact Hardy Today
Phone:
|
Order a container load - Click Here
Hardy Storage Systems sells by container loads only.
Download an order form here and email or fax it to us.
